Application Scenarios and Scope of Application
Panel furniture manufacturing: Final coating and curing of edge banding surfaces of cabinets, wardrobes, TV cabinets, office furniture, etc. Customized furniture: Customized furniture production with high requirements for edge banding quality and appearance. Edge banding professional manufacturer: Provide furniture factories with high-quality edge banding pre-coated with UV varnish.
Product Features/Benefits
Significantly improve production efficiency: Instant curing, no need to wait for drying, and significantly increase the speed of the production line (up to tens of meters/minute). Ensure excellent edge banding quality: Complete and uniform curing, high coating hardness, wear and scratch resistance, good gloss, strong adhesion, improve the overall quality and durability of furniture. Reduce defective rate and rework: Thorough and stable curing, reduce quality problems such as stickiness, shedding, scratches, etc. caused by insufficient curing. Save space and energy: The equipment is compact and does not require a large drying room; the electronic power supply significantly reduces power consumption. Environmentally friendly production: The UV curing process does not volatilize solvents (zero VOC emissions), improves the workshop environment, and meets environmental protection requirements. Easy operation and low maintenance cost: High degree of automation, easy to integrate into the production line; electronic power supply and modular design reduce long-term maintenance costs.
Technology & Processes

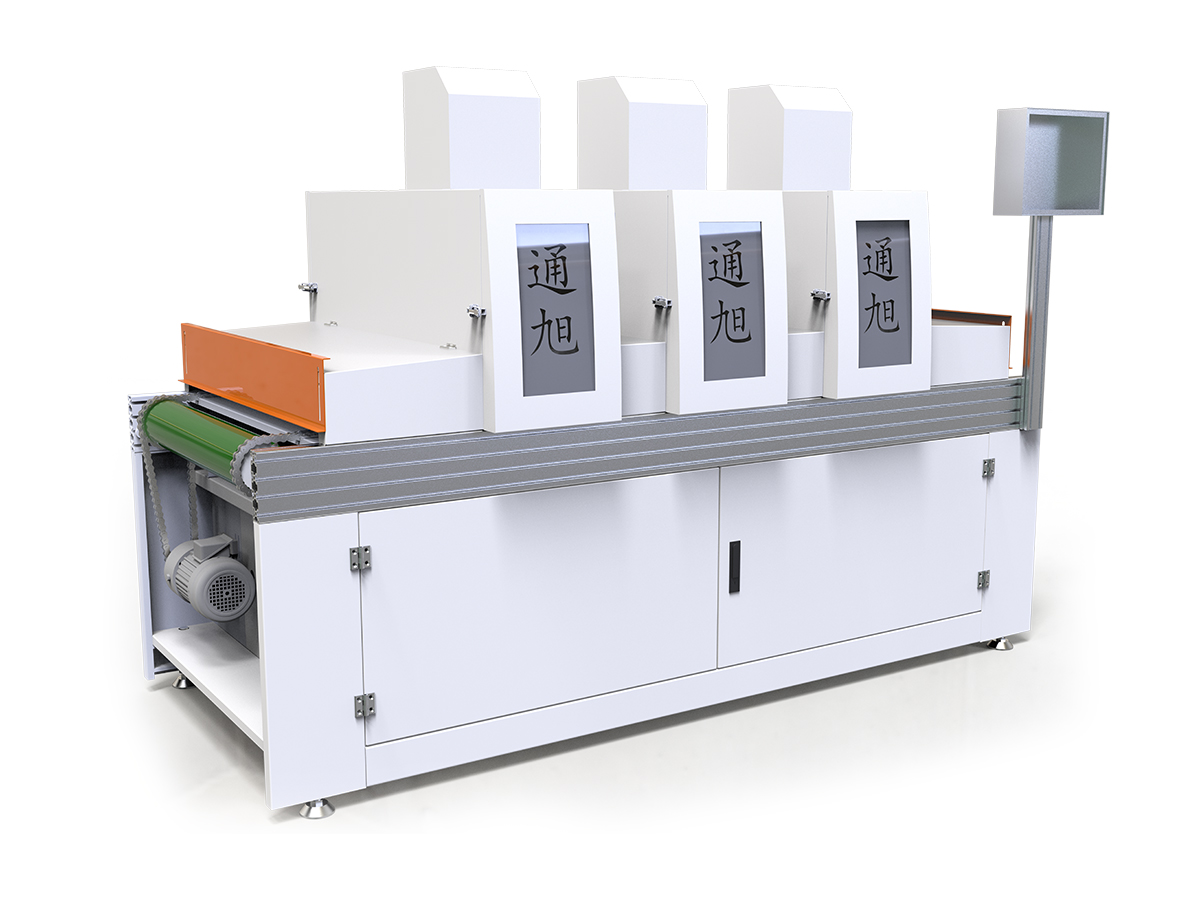

Three-lamp efficient curing: Three high-intensity UV mercury lamps arranged in parallel provide uniform and sufficient UV energy output. Significantly improve curing efficiency: Compared with single-lamp or dual-lamp equipment, it can cure the coating faster and more thoroughly, especially suitable for wider edge banding, high-hiding inks or coatings that require deep curing, ensuring complete curing in one pass. Optimize curing effect: The multi-lamp design reduces shadow areas, ensures uniform curing of the entire surface of the edge banding (especially the edges and grooves), and improves product appearance consistency and physical properties (adhesion, wear resistance, scratch resistance). Electronic high-frequency power supply technology (core advantage): High efficiency and energy saving: Compared with traditional inductive ballasts (transformers), electronic power supply has extremely high conversion efficiency (usually >95%), low self-loss, significantly reduces equipment operation energy consumption, and saves electricity costs in the long term. Stable and accurate output: Provides extremely stable and pure current to the UV lamp to ensure constant UV intensity, unaffected by grid voltage fluctuations. This is the key to ensuring consistent curing quality and reducing defective products. Instant start and stop & adjustable power: Supports instant lighting and extinguishing of the lamp (without delay), which is convenient for production line start and stop control and energy saving. Some models support stepless power adjustment (such as 50%-100%), which is flexible to adapt to different curing requirements and coating types. Small size, light weight, low temperature rise: Compact structure, good heat dissipation, reducing equipment size and weight, and lowering the working environment temperature. Extend lamp life: Stable current output and soft start characteristics effectively reduce the impact on the lamp and extend the service life of the UV lamp. Professional air cooling system: Built-in powerful heat dissipation fan effectively removes the huge heat generated by the lamp. Ensure continuous production: Prevent equipment from overheating and shutting down, ensuring stable operation under long-term, high-intensity production environment. Protect the substrate: Rapid heat dissipation prevents edge banding (especially heat-sensitive materials) from deformation or damage due to overheating. Maintain lamp efficiency: Keep the lamp at the optimal working temperature to ensure stable UV output intensity. Precise conveying and irradiation: Equipped with a speed-adjustable conveyor belt (usually a high-temperature resistant Teflon mesh belt), the speed can be adjusted to accurately control the curing time (irradiation dose). The optimized reflector design (usually an aluminum alloy mirror reflector) focuses the ultraviolet energy, maximizes the use of light efficiency, and improves the curing efficiency. Safe, reliable and easy to maintain: Equipped with complete safety devices: door switch interlock protection (automatic light off when the door is opened), over-current and over-voltage protection, over-temperature alarm, etc., to ensure the safety of operators. Modular design: Core components such as lamps, ballasts (electronic power supplies), and reflectors are easy to disassemble, maintain, and replace, reducing downtime. Intelligent temperature control: Real-time monitoring of lamp and cabinet temperature to ensure operation within a safe range.
